WILGER QUICK NUT STAINLESS STEEL TUBE FLUID SUPPLY SYSTEM

Wilger Quick Nut Stainless Steel Tube System (QN SST) is the best engineered sprayer fluid supply system available in the market today. It pairs low cost/weight with easier maintenance/assembly for a hassle free experience, letting you spray longer.

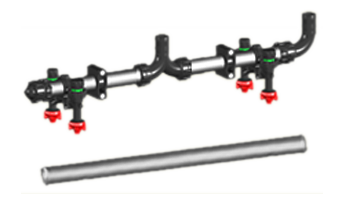

STAINLESS STEEL BOOM TUBE

Thin wall stainless boom tube comes ready to assemble, with formed ends and pre-punched nozzle body inlet holes. Thin wall tube weighs less and has lager inside diameter to better accommodate high flow rates. 1.315″ outside diameter is same as standard 1″ pipe to accommodate 1″ nozzle bodies.

More Info
Product Range

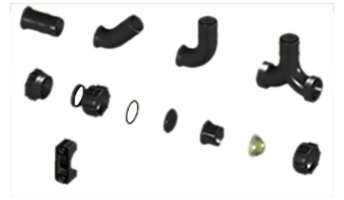

QUICK-NUT FITTINGS

O-ring seal fittings easily assemble and disassemble without tools. Minimal pressure drop through SWEEP style 45 and 90 degree fittings and INLET TEE fittings. 1-1/4″ NPT thread allows fittings to be used interchangeably with standard 1-1/4″ fittings.

More Info
Product Range

1/2″ & 1″ Pipe Sizes Available

QN SST comes in both two sizes:

1/2″ (0.84″ OD)

1″ (1.315″ OD)

Plumbing fittings for both sizes

Less Pressure Drop

With the large inside diameter, there is more flow capacity while maintaining the same outside dimension as 1″ pipe.

Best in Class Weight Reduction

1″ SST weighs 23% of Sch40 pipe
1″ SSt weighs 66% of aluminum

1/2″ SST weighs 28% of Sch40 pipe
1/2″ SST weighs 80% of aluminum

SST retains structural strength of stainless steel

Pre-punched Holes

SST has pre-punched holes for the required hole size and spacing.

Unpunched SST is available for plumbing and recirculating boom systems.

No Threaded Boom Ends

SST has pre-punched holes for the required hole size and spacing.

Unpunched SST is available for plumbing and recirculating boom systems.

Boom Clamps

Compact & durable boom clamps make boom installation and removal easy

1/2″ & 1″ SST Fittings

Fittings are available in two sizes:

1/2″ for 0.84″ outside diameter pipe

1″ for 1.315″ outside diameter pipe

No Tools Needed

Since all fittings are o-ring sealed, there isn’t any need for specialized tools or equipment to take apart or put QN SST fittings together.

Less Pressure Drop

All of the QN SST sweep tee and elbow fittings keep the largest inside diameter possible, reducing pressure loss through the plumbing.

No Threaded Boom Ends

SST has pre-punched holes for the required hole size and spacing.

Unpunched SST is available for plumbing and recirculating boom systems.

Utility Fittings

Wilger makes a number of fittings from site glasses, threaded end caps [for pressures gauges] to boom end flush valves, which provide more function than a standard plug cap.

Boom Clamps

Compact & durable boom clamps make boom installation and removal easy

BOOM END FLUSH VALVES

Wilger’s boom end flush valves are made to fit QN SST booms; however, there are adapters to have them fit on 1″ NPT pipe thread.

For Quick-Nut SST booms, use #25175-V0
For 1″ NPT booms, use #25176-V0
