WILGER COMBO-RATE® STACKING NOZZLE BODIES

WILGER Combo-Rate nozzle bodies give you more application options, are easier to use and built tougher.

Combo-Rate® (CR) patented nozzle bodies are the only stackable/modular and configurable nozzle bodies that can spray independently of each other.

COMBO-JET® TIP-CAPS & STRAINERS

Rugged and durable. Unique Radialock cap retainer makes it easier to put on and take off caps and caps are less likely to get knocked off. Available in single, double and triple outlet wet boom, dry boom and KWIKSTOP models.

More Info
Product Range

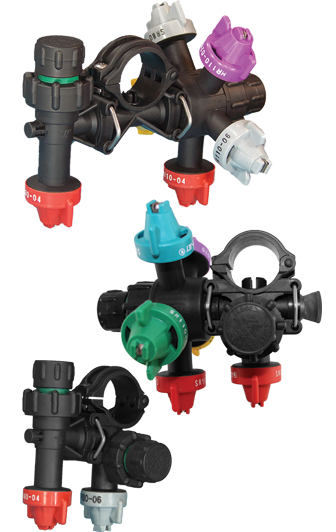

COMBO-RATE® NOZZLE BODIES

Let you spray with more than one tip at same location to optimize coverage, drift control… and results. COMBO-RATE II saddles have a universal mount that allows them to be mounted with the fluid take off at bottom of the boom pipe, just like conventional nozzle bodies.

More Info
Product Range

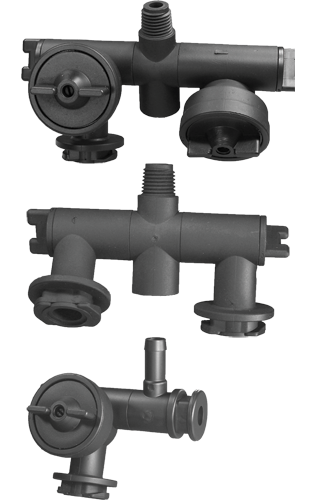

ADJUSTABLE SWIVEL NOZZLE BODIES

WILGER ADJUSTABLE SWIVEL NOZZLE BODIES

Work great for spray boom end nozzles or stationary systems. Single and double outlet models can be stacked. Available in open flow, diaphragm shut-off, manual shut-off and square mount models.

More Info
Product Range

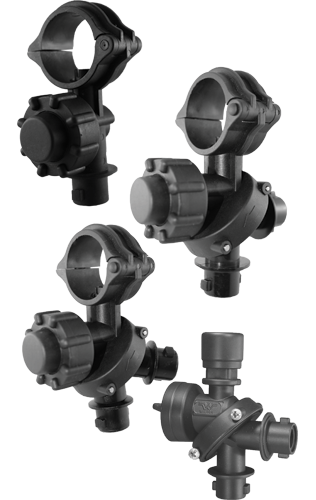

CONVENTIONAL / SQUARE-LUG SWIVEL NOZZLE BODIES

Are interchangeable with conventional / square-lug nozzle bodies and accommodate conventional / square-lug tip caps. Available in single, double and triple outlet wet boom, dry boom and KWIKSTOP models.

More Info
Product Range

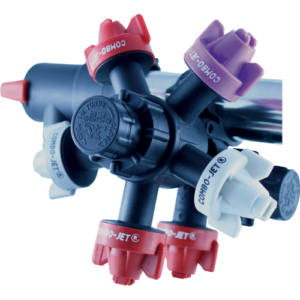

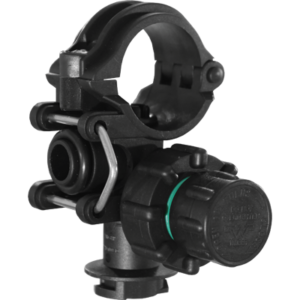

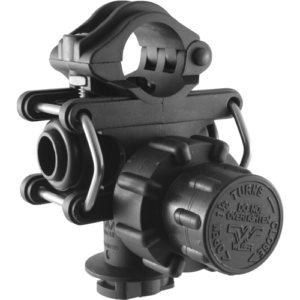

COMBO-RATE® II (CRII) NOZZLE BODIES [BOTTOM FED INLET]

COMBO-RATE® II STACKING NOZZLE ARE A NEW DESIGN, WHICH INCLUDE HAVING THE NOZZLE BODIES ATTACH TO THE BOOM WITH A BOTTOM (OR TOP*) FED INLET. NOTABLY, THIS ALLOWS FOR NOZZLE BODIES TO BE STACKABLE BOTH FORWARD AND BACKWARD OFF OF A BOOM. (AS WELL AS HAVING AN OUTLET DIRECTLY UNDER THE BOOM)
WHEN PAIRED WITH WILGER’S SHUT-OFF MODULES, IT CREATES A VERSATILE NOZZLE BODY SYSTEM THAT IS LIMITLESS IN CONFIGURATIONS.
RANGING FROM SIMPLE CONFIGURATIONS OF USING MULTIPLE SPRAY TIPS AT THE SAME TIME, TO OPERATING THREE SETS OF NOZZLES ON AIR ACTUATED LINES THAT CAN CHANGE FLOW RATES AND TIPS FROM WITHIN THE CAB.

CRII SADDLES CAN BE MOUNTED WITH THE INLET IN THE BOTTOM (TYPICAL), OR THEY CAN BE MOUNTED WITH THE BOOM PIPE ROTATED SO THE INLET IS FACING UPWARDS.
YOU MIGHT ASK WHY?
CONSIDER HAVING EACH NOZZLE BODY (WITH SLOTTED INLETS) PULLING EVERY LAST BIT OF AIR OUT OF YOUR BOOM PIPES. THIS IS BY FAR THE BEST AND MOST PASSIVELY ACTING AIR REMOVAL SYSTEM AVAILABLE FOR BOOMS.
AS BOOM PIPES ARE NEVER EXACTLY LEVEL, AIR GETS TRAPPED EASILY DOWN THE LENGTH OF THE PIPE, WHICH CAN CAUSE SIGNIFICANT SPRAY RUN-ON, WHICH WASTES MONEY AND CAN CAUSE CROP DAMAGE [ON TOP OF ENVIRONMENTAL CONTAMINATION].

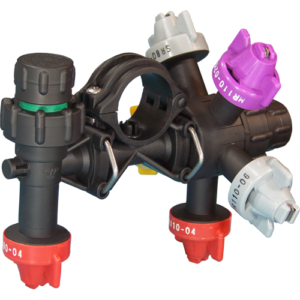

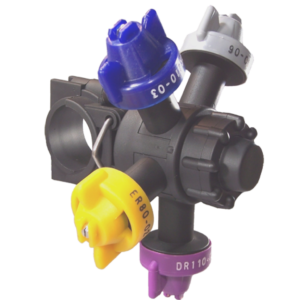

COMBO-RATE® NOZZLE BODIES & SADDLES [SIDE FED INLET]

COMBO-RATE® STACKING NOZZLE BODIES ATTACH TO A BOOM WITH A SIDE-FED SADDLE BODY, AND CAN BE STACKED WITH A VARIETY OF NOZZLE BODIES/OUTLETS TO CONFIGURE A BOOM FOR ANY SPRAY APPLICATION.
WHEN PAIRED WITH WILGER’S SHUT-OFF MODULES, IT CREATES A VERSATILE NOZZLE BODY SYSTEM THAT IS LIMITLESS IN CONFIGURATIONS.
RANGING FROM SIMPLE CONFIGURATIONS OF USING MULTIPLE SPRAY TIPS AT THE SAME TIME, TO OPERATING THREE SETS OF NOZZLES ON AIR ACTUATED LINES THAT CAN CHANGE FLOW RATES AND TIPS FROM WITHIN THE CAB.

SLOTTED INLET FOR DEBRIS CLEANOUT

ALL CRII NOZZLE BODIES HAVE A SLOTTED INLET, PROVIDING THE ULTIMATE BOOM DRAINING CAPABILITIES, AS THE SLOTS GO ALL THE WAY DOWN TO EVEN THE THINNEST BOOM PIPE, WHICH LEAVES LESS CHEMICAL RESIDUE OR DEBRIS TO SIT IN THE BOTTOM OF THE BOOM.

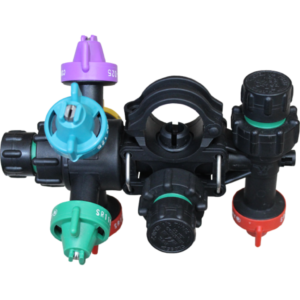

HIGH FLOW INLET SIZES

COMBO-RATE® NOZZLE BODIES HAVE OPTIONS FOR LARGER INLET FEEDS FOR SPRAYERS THAT REQUIRE HIGHER FLOW RATES THAN STANDARD 3/8″ INLETS CAN PROVIDE.
9/16″ & 11/32″ INLET SIZES ARE AVAILABLE IN MOST NOZZLE BODIES.

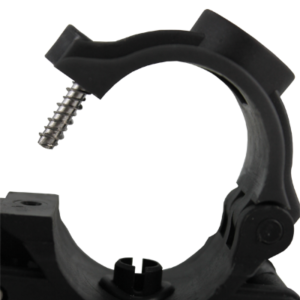

IMPROVED HINGED CLAMP

1″ COMBO-RATE® II NOZZLE BODIES HAVE A HI-LO SCREWED HINGE CLAMP, AVAILABLE IN SMOOTH AND BOLT MOUNT OPTIONS, FOR EASY INSTALLATION.
THE HI-LO SCREW REPLACES A STANDARD NUT & BOLT CLAMP, WHICH IS PRONE TO GALLING.

MULTI-TIP SPRAYING

WITH THE STACKING NOZZLE BODY FEATURE, YOU CAN SPRAY WITH MORE THAN ONE TIP AT THE SAME TIME.
MULTI-TIP APPLICATION CAN BE EXTREMELY USEFUL TO IMPROVING COVERAGE AND PENETRATION FOR COVERAGE SENSITIVE APPLICATIONS.
USING MULTIPLE TIPS SPRAYING STRAIGHT DOWN CAN OUTPERFORM ANGLED SPLIT TIPS WHEN IT COMES TO PENETRATING DENSE CANOPIES AND CROPS.

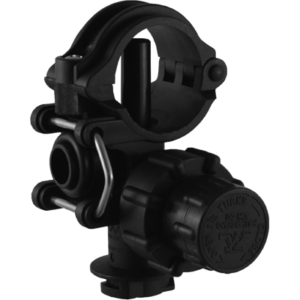

KWIKSTOP™ RAISED INLETS

SST has pre-punched holes for the required hole size and spacing.

Unpunched SST is available for plumbing and recirculating boom systems.

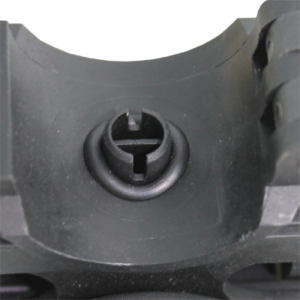

WEBBED INLET FEED

SST has pre-punched holes for the required hole size and spacing.

Unpunched SST is available for plumbing and recirculating boom systems.

1/2″ & 1″ SIZES

Compact & durable boom clamps make boom installation and removal easy

STACKING DESIGN

Compact & durable boom clamps make boom installation and removal easy

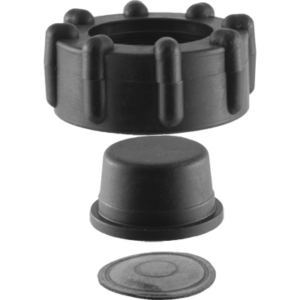

DIAPHRAGM CHECK VALVE

AVAILABLE IN 4PSI, 10PSI (STANDARD) AND 15PSI VERSIONS
FAIRPRENE DIAPHRAGMS STANDARD. VITON® DIAPHRAGMS AVAILABLE.

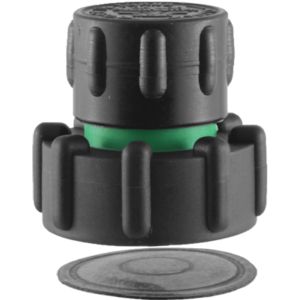

MANUAL ON/OFF CHECK VALVE

WHEN ‘ON’, IT ACTS AS A 10PSI* CHECK VALVE.
WHEN ‘OFF’, IT TURNS OFF THE FLOW COMPLETELY TO THAT BODY (*4PSI/10PSI/15PSI OPTIONS ARE AVAILABLE)
FAIRPRENE DIAPHRAGMS STANDARD. VITON® DIAPHRAGMS AVAILABLE.

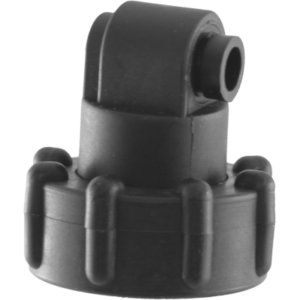

AIR-OFF CHECK VALVE

ACTS AS A STANDARD DIAPHRAGM CHECK VALVE, BUT WHEN AN ATTACHED AIR LINE IS CHARGED, IT WILL TURN OFF THE FLOW TO THAT BODY.
FAIRPRENE DIAPHRAGMS STANDARD. VITON® DIAPHRAGMS AVAILABLE.

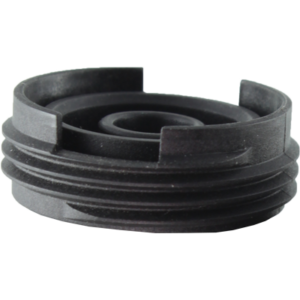

OPEN THREAD OPTION

SHARING THE SAME THREAD AS ALL COMBO-RATE® MODULES, THE OPEN THREAD IS COMPATIBLE WITH PWM OR OTHER PRECISION AG SYSTEMS.

TIP WIZARD

VISIT WILGER’S TIP and FERTILISER WIZARDS
