WILGER FLOW VIEW ™ BALL FLOW INDICATORS

Cost effective, modular, flexible configuration ball flow indicators let you see the liquid flow when you can’t see the nozzles or outlets.

Flow ViewTM Ball Flow Indicators let you identify any plugs or leaks so you can resolve them immediately.

No electronics needed. No costly maintenance.

Just a simple, dependable flow indicator.

Flow indicators are available in Manifold feed and Isolated feed columns.

SEEING IS KNOWING

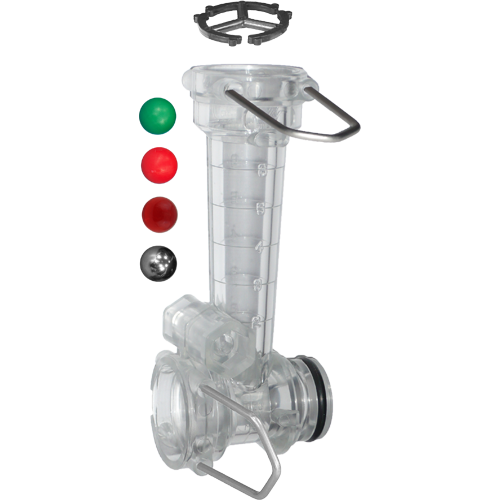

A glance is all it takes to know if the correct amount of liquid is flowing to your spray nozzles or planter openers.

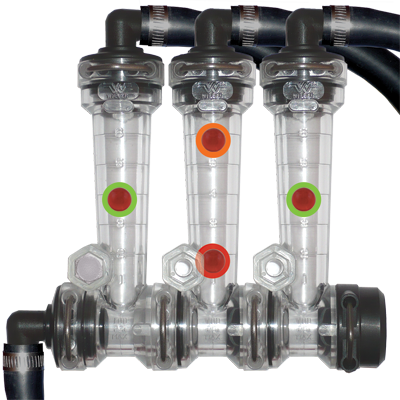

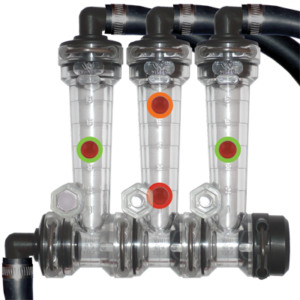

When the liquid is flowing equally the balls hover at the same level:

If a ball drops (relatively to the others), the flow is blocked or restricted.

If the ball is rising higher (relatively to the others), the flow is too high, due to a leaking outlet or hose.

More Info

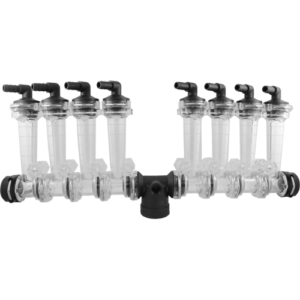

  • Individual columns clip together so you can gang as many or as few columns as you need.
  • Exclusive O-ring seal and joint clip system is easy to assemble and service.
  • You can monitor up to three spray tips per column.
  • Metering orifices can be inserted to control flows ranging from 0.004 – 8.0 USGPM.
Product Range

MANIFOLD FEED FLOW INDICATOR COLUMNS

THE FLOW VIEW™ MANIFOLD COLUMNS ARE INFINITELY STACKABLE, SO THEY CAN BE BUILT INTO ANY REQUIRED CONFIGURATION.

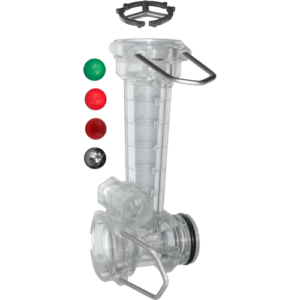

MANIFOLD FLOW INDICATORS COME IN THREE DIFFERENT COLUMNS SIZES, BROKEN DOWN BY RECOMMENDED FLOW RANGES:

ULTRA LOW FLOW COLUMN: 0.01 – 0.24 US GPM FLOW RATES
LOW FLOW COLUMN: 0.05 – 0.65 US GPM FLOW RATES
STANDARD FLOW COLUMN: 0.07 – 2.70 US GPM FLOW RATES

ISOLATED FEED FLOW INDICATORS

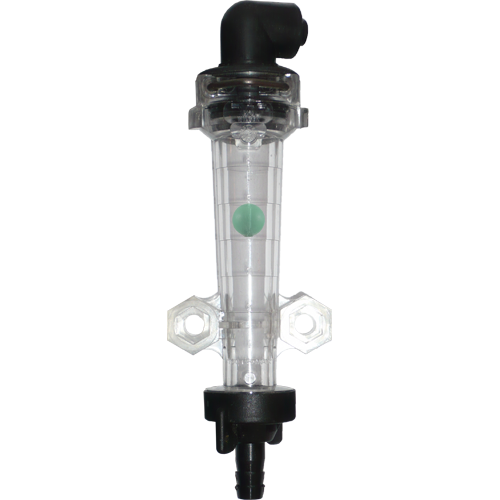

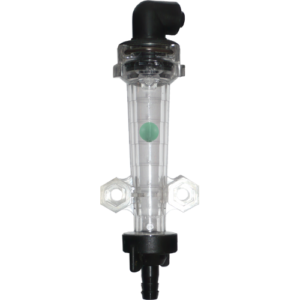

THE FLOW VIEW™ ISOLATED FEED COLUMNS ARE USED TO MONITOR MULTIPLE SINGLE FEED LINES. FOR EXAMPLE, MONITORING INDIVIDUAL LINES COMING OUT OF A SQUEEZE PUMP.

ISOLATED FEED FLOW INDICATORS COME IN TWO DIFFERENT COLUMNS SIZES, BROKEN DOWN BY RECOMMENDED FLOW RANGES:

LOW FLOW COLUMN: 0.05 – 0.65 US GPM FLOW RATES
STANDARD FLOW COLUMN: 0.07 – 2.70 US GPM FLOW RATES

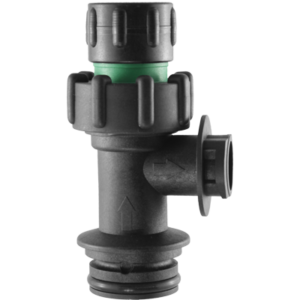

WILGER MAKES TWO STYLES OF CHECK VALVE BODY, WITH 4 DIFFERENT SHUT-OFF OPTIONS AVAILABLE FOR EACH

O-RING SEAL (ORS) TO ORS

AN ORS MALE INLET WITH AN ORS FEMALE PORT, ALLOWING FOR AN ORS METERING ORIFICE AND ORS FITTING TO COMPLETE A MANIFOLD ASSEMBLY.

ORS TO RADIALOCK CAP

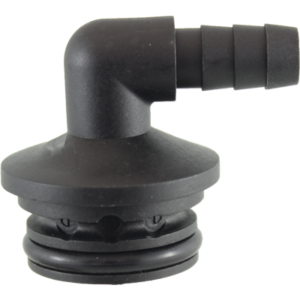

AN ORS MALE INLET WITH A RADIALOCK CAP OUTLET (SEE WILGER PRICELIST FOR OPTIONS), USE WITH METERING ORIFICE (#40285-XX SERIES) TO COMPLETE A MANIFOLD ASSEMBLY.

DIAPHRAGM CHECK VALVE

AVAILABLE IN 4PSI, 10PSI (STANDARD) AND 15PSI VERSIONS
FAIRPRENE DIAPHRAGMS STANDARD. VITON® DIAPHRAGMS AVAILABLE.

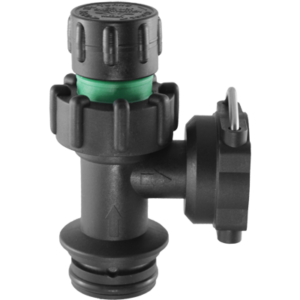

MANUAL ON/OFF CHECK VALVE

WHEN ‘ON’, IT ACTS AS A 10PSI* CHECK VALVE.
WHEN ‘OFF’, IT TURNS OFF THE FLOW COMPLETELY TO THAT BODY (*4PSI/10PSI/15PSI OPTIONS ARE AVAILABLE)
FAIRPRENE DIAPHRAGMS STANDARD. VITON® DIAPHRAGMS AVAILABLE.

AIR-OFF CHECK VALVE

ACTS AS A STANDARD DIAPHRAGM CHECK VALVE, BUT WHEN AN ATTACHED AIR LINE IS CHARGED, IT WILL TURN OFF THE FLOW TO THAT BODY.
FAIRPRENE DIAPHRAGMS STANDARD. VITON® DIAPHRAGMS AVAILABLE.

OPEN THREAD OPTION

SHARING THE SAME THREAD AS ALL COMBO-RATE® MODULES, THE OPEN THREAD IS COMPATIBLE WITH PWM OR OTHER PRECISION AG SYSTEMS.

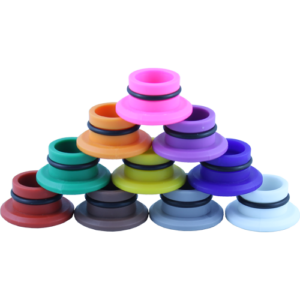

ORS METERING ORIFICES

O-RING SEAL METERING ORIFICES ARE ACCURATE AND LARGE ENOUGH TO MAKE THEM EASY TO HANDLE, SO SWITCHING RATES IS EASY.

CUSTOM HOLE-SIZE ORIFICES AND ISO-COLOR CODED ORIFICES ARE AVAILABLE TO MATCH ANY RATE REQUIRED.

BEST IN CLASS CLARITY

O-RING SEAL METERING ORIFICES ARE ACCURATE AND LARGE ENOUGH TO MAKE THEM EASY TO HANDLE, SO SWITCHING RATES IS EASY.

CUSTOM HOLE-SIZE ORIFICES AND ISO-COLOR CODED ORIFICES ARE AVAILABLE TO MATCH ANY RATE REQUIRED.

360° RANGE OF MOTION

ALL O-RING SEALED FITTINGS CAN BE SPUN 360° WITHOUT FEAR OF LEAKING OF PULLING OUT.

THIS MAKES INSTALLATION EASY AS THE FITTINGS PIVOT TO WHERE YOU NEED THEM TO POINT.

CHEMICAL RESISTANCE

ALL OF THE FLOW VIEW™ AND ORS FITTING PRODUCT LINES ARE MADE SPECIFICALLY FOR CHEMICAL RESISTANCE.

WITH ALL FITTINGS MADE OUT OF GLASS-REINFORCED POLYPROPYLENE WITH VITON® O-RING OPTIONS, THERE ISN’T MUCH THAT THESE FLOW INDICATORS CAN’T HANDLE.

TIP WIZARD

VISIT WILGER’S TIP and FERTILISER WIZARDS
